REPOWERTEK

For Lead-acid batteries > Regenerator > For 2V only

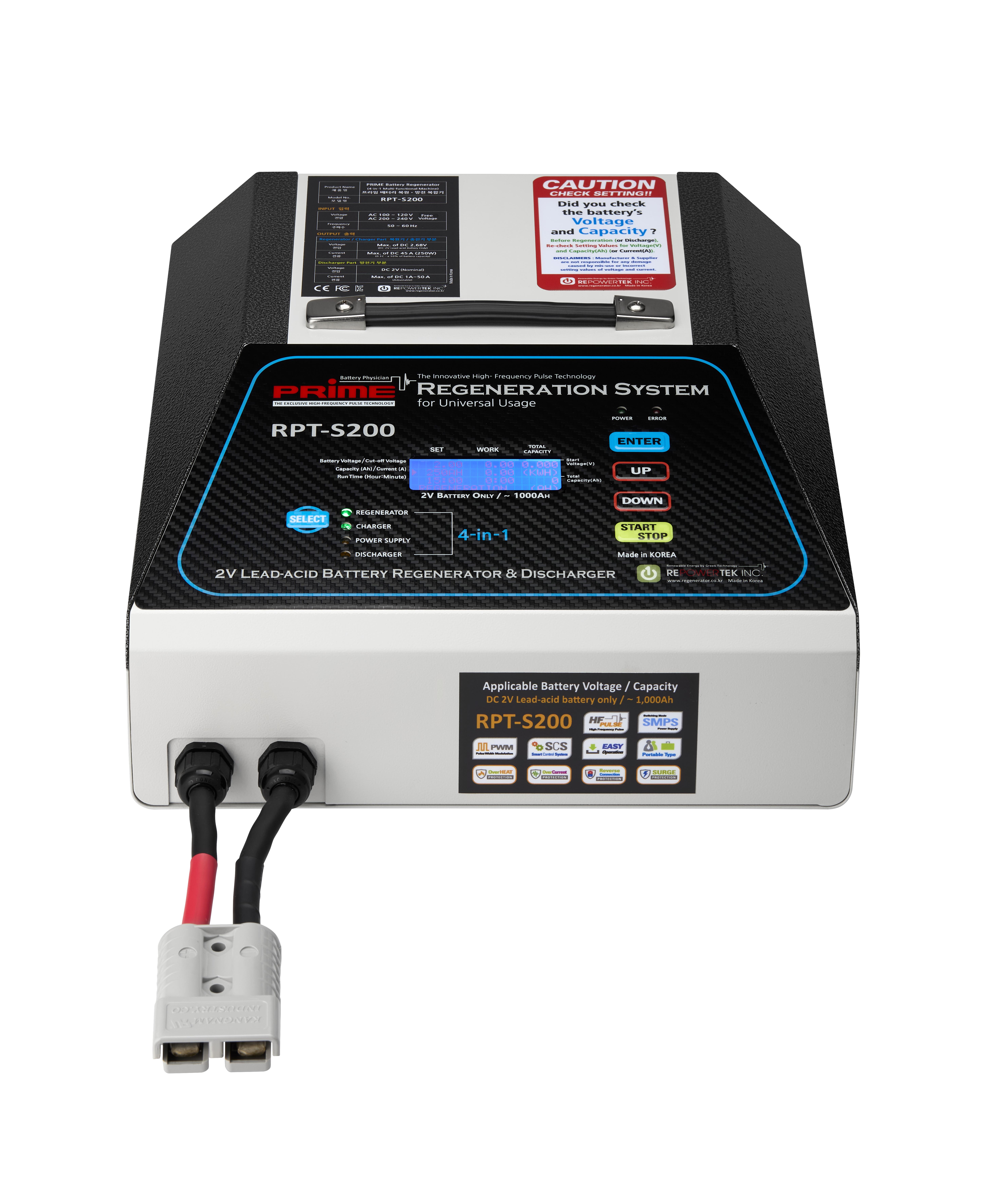

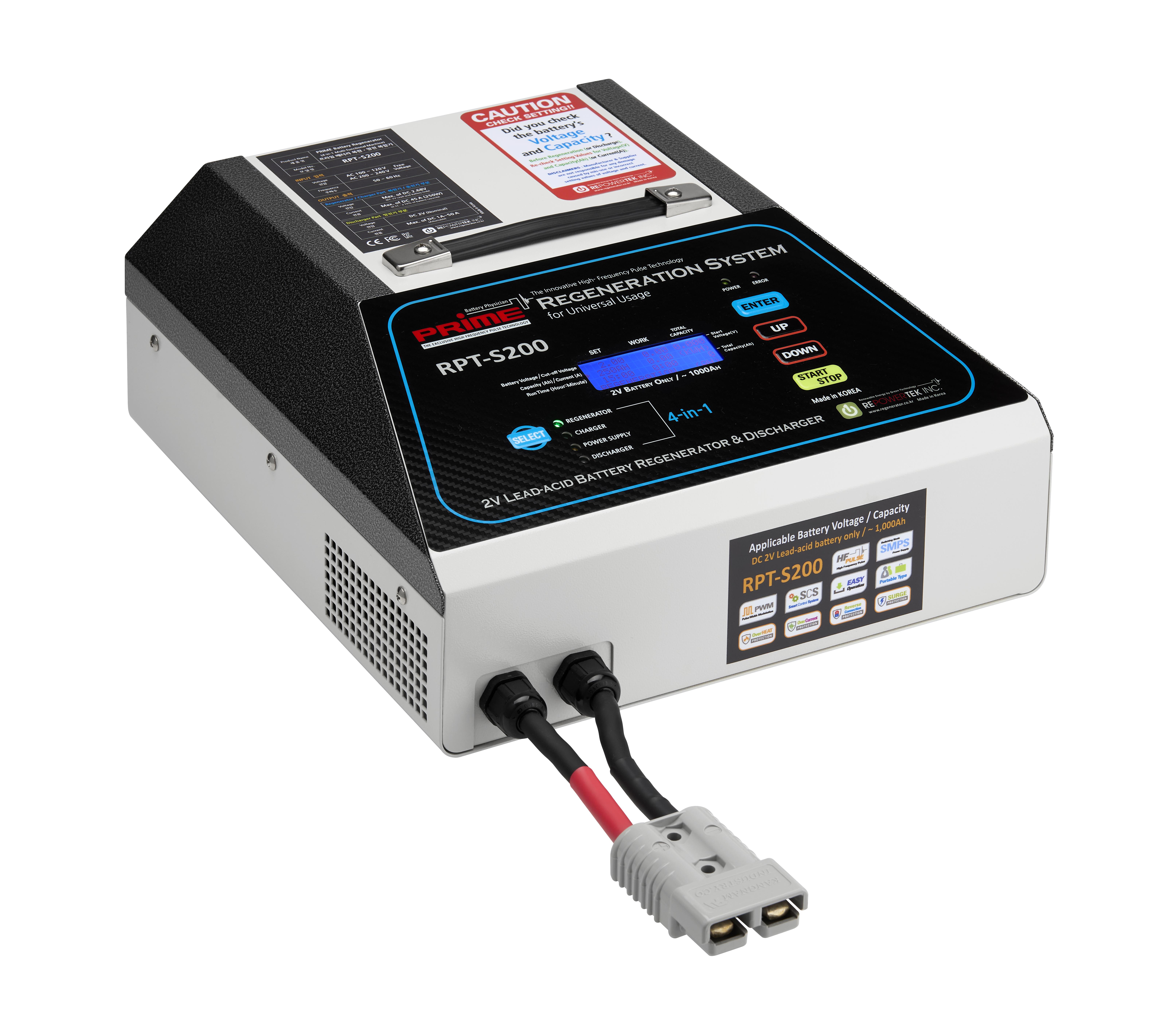

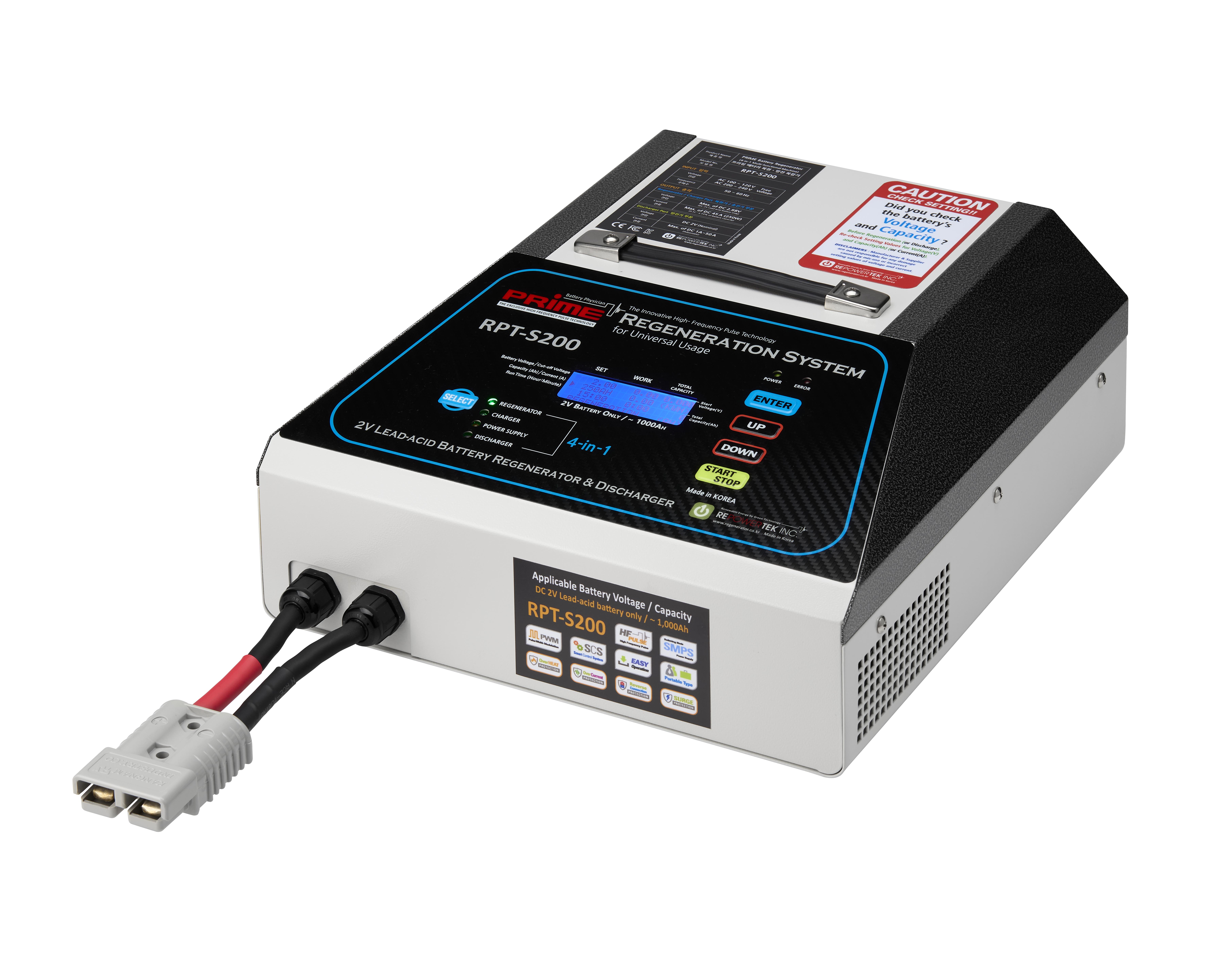

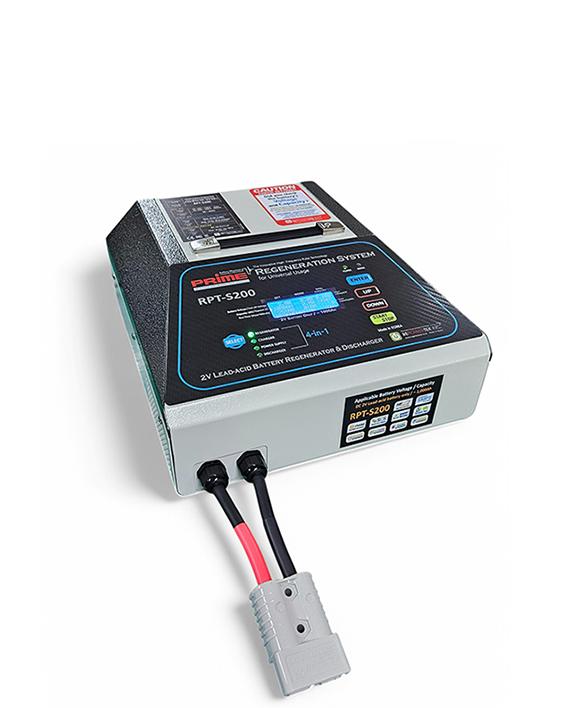

RPT-S200

For all types of Lead-Acid Batteries

4-in-1 BaaS Mobile Workstation

· High-Frequency Regenerator
· Smart Charger
· DC Power Supply
· Precision Discharger
(To be released in Jan. 06, 2027)

Key Points

Maximize Battery Life & Efficiency – Eliminate premature bank replacements by targeting and restoring individual degraded 2V cells.

Proactive Pre-Regeneration Strategy – Pre-condition spare 2V cells for immediate hot-swapping to instantly rebalance degraded 48V battery strings.

Safe & Sustainable Maintenance – Replace hazardous over-voltage equalization with automated, gentle pulse regeneration

Contact
List

Performance & Technology

4-in-1 Multifunctional System: Fully automated regeneration, intelligent charging, dis-charging, and real-time diagnostic testing in one compact unit.

Targeted 2V Cell Care: Concentric restoration designed specifically for 2V stationary lead-acid cells (Telecom, UPS, BESS, and Traction systems).

Smart BaaS Data Monitoring: Intuitive automated controls integrated with cloud-based BaaS (Battery as a Service) real-time data tracking.

Closed-Loop Circulation Management: Cost-effectively refurbish, swap, and reuse degraded cells across multiple battery banks without system downtime.

Certified Safety & Quality: Fully compliant with CE, FCC, and KC global standards to guarantee safe, reliable operation.

Technical Specifications

DC Output Voltage: DC 2V Only (cell assemblies)

Battery Capacity Range: 40Ah ~ 1,000Ah Capacity

Regeneration Output Current : Max. 45A

Output Discharge : Max. 50A

AC Input Power : AC 100V ~ 250V / 50Hz ~ 60Hz

Power Consumption: 250W Max

Efficiency: Active Power Factor Correction (PFC) integrated

Safety & Smart Control

Thermal Protection: Prevents temperature spikes through active output voltage/current regulation.

Over-Voltage & Line Protection: Input over-voltage protection and voltage variation stabilization to prevent potential thermal hazards.

Interface: Smart MICOM control system paired with an 8-inch touch screen monitor.

Portability: Portable design optimized for field maintenance and worldwide operating conditions.

Dimensions (WxDxH): 345 × 420 × 180mm (13.6 × 16.5 × 7.1 in)

Weight: 14.2 kg / 31.3 lbs (Body and Cable)

Includes 50 mm² (50SQ) (1/0 AWG)

Service Maintenance Battery Cable (2.5m/8.2ft)
