For Lead-acid batteries > Regenerator > For 2V~96V

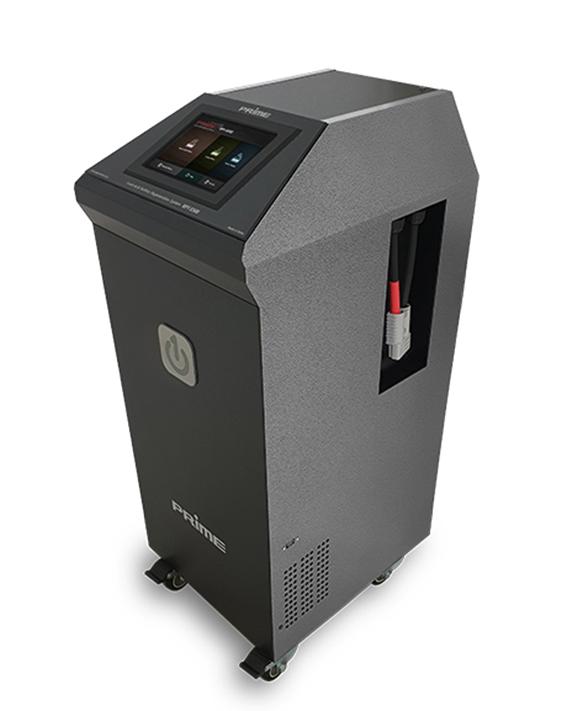

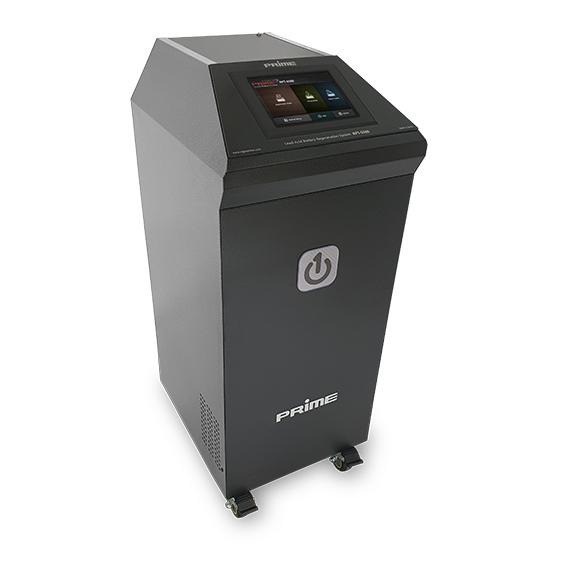

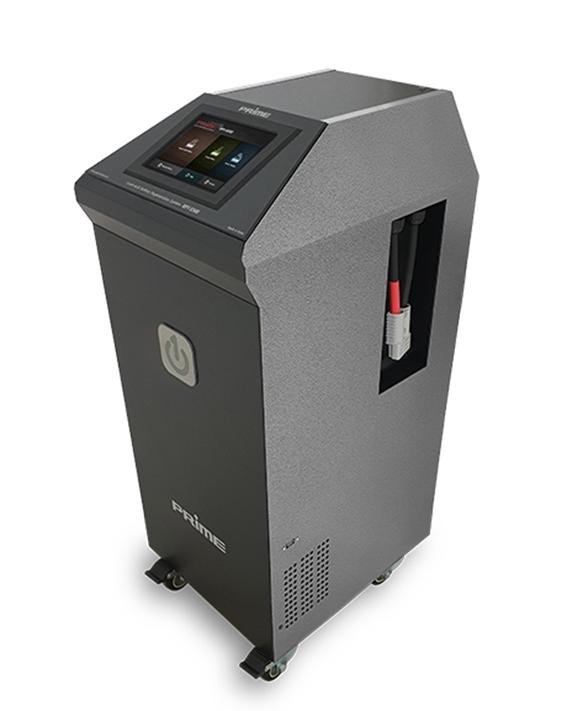

RPT-S500
For all types of Lead-Acid Batteries
3-in-1 Multifunctional
· High-Frequency Regeneration
· Smart Charger
· DC Power Supply
· Smart Charger
· DC Power Supply
Key Points
Extends Battery Lifecycle: Prolongs lead-acid battery lifespan by 2× to 3× using advanced high-frequency pulse technology (up to 40kHz).
Broad Compatibility: Restores and recharges all types of 2V–96V lead-acid batteries, including GEL, AGM VRLA, Telecom UPS, and Forklift batteries.
High-Capacity Processing: Supports single-process restoration up to 1,000Ah (expandable up to 3,000Ah through repeated cycles after cooling).
Energy Efficient & Cost-Saving: Utilizes SMPS switching control to achieve ultra-low power consumption with a maximum power draw of 5kW.
User-Friendly Operation: Features a smart MICOM control system with an intuitive 8-inch touch screen for effortless monitoring and manual configuration.
Broad Compatibility: Restores and recharges all types of 2V–96V lead-acid batteries, including GEL, AGM VRLA, Telecom UPS, and Forklift batteries.
High-Capacity Processing: Supports single-process restoration up to 1,000Ah (expandable up to 3,000Ah through repeated cycles after cooling).
Energy Efficient & Cost-Saving: Utilizes SMPS switching control to achieve ultra-low power consumption with a maximum power draw of 5kW.
User-Friendly Operation: Features a smart MICOM control system with an intuitive 8-inch touch screen for effortless monitoring and manual configuration.
| Performance & Technology |
| Regeneration Method: Optimized high-frequency pulse algorithm (up to 40kHz). |
| Multi-Battery Capability: Restores and charges multiple batteries simultaneously up to 96V. |
| Power Supply Mode: Functions as a high-end power supply with manual parameter adjustments. |
| Desulfation & Protection: Minimizes electrode damage and restrains sulfate accumulation without causing physical or electrical stress. |
| Technical Specifications |
| DC Output Voltage: DC 2V ~ 96V (adjustable) |
| Output Current: Max. 55A (precise micro-control tailored to battery type) |
| Battery Capacity Range: 40Ah ~ 1,000Ah (Max. 3,000Ah via repeated cycles) |
| AC Input Power: AC 210V ~ 250V / 50Hz ~ 60Hz |
| Max Power Consumption: 5kW |
| Safety & Smart Control |
| Thermal Protection: Prevents temperature spikes through active output voltage/current regulation. |
| Over-Voltage & Line Protection: Input over-voltage protection and voltage variation stabilization to prevent potential thermal hazards. |
| Interface: Smart MICOM control system paired with an 8-inch touch screen monitor. |
| Portability: Portable design optimized for field maintenance and worldwide operating conditions. |

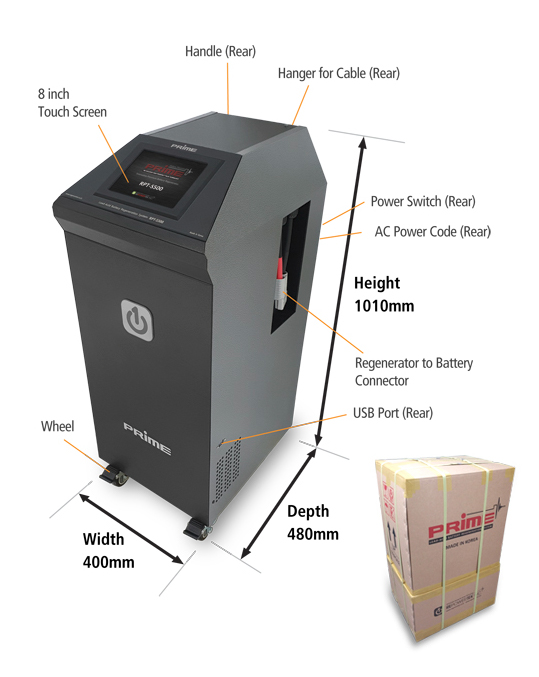

| Dimensions (WxDxH): 400 x 480 x 1,010mm (16×19×40 in) |
| Weight : Approx. 57.5Kgs (127 lbs) |
| Includes 50 mm² (50SQ) (1/0 AWG) |
| Service Maintenance Battery Cable (2.0m/6.6ft) |
|
Technical Specifications |
| DC Output Voltage: DC 2V ~ 96V (adjustable) |
| Output Current: Max. 55A (precise micro-control tailored to battery type) |
| Battery Capacity Range: 40Ah ~ 1,000Ah (Max. 3,000Ah via repeated cycles) |
| AC Input Power: AC 210V ~ 250V / 50Hz ~ 60Hz |
| Max Power Consumption: 5kW |
