For Lead-acid batteries > Discharger

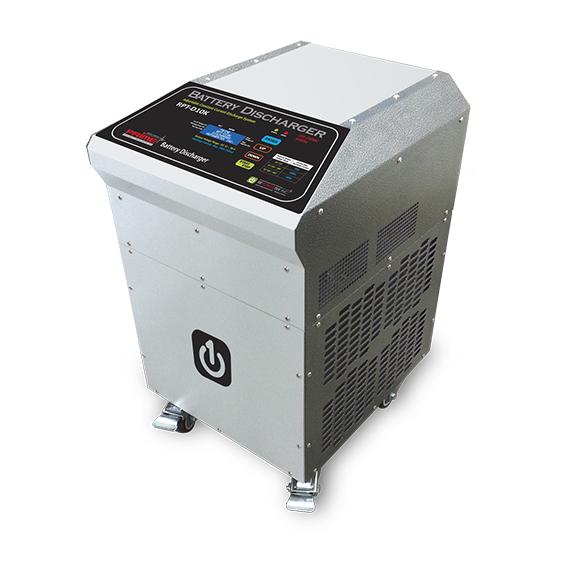

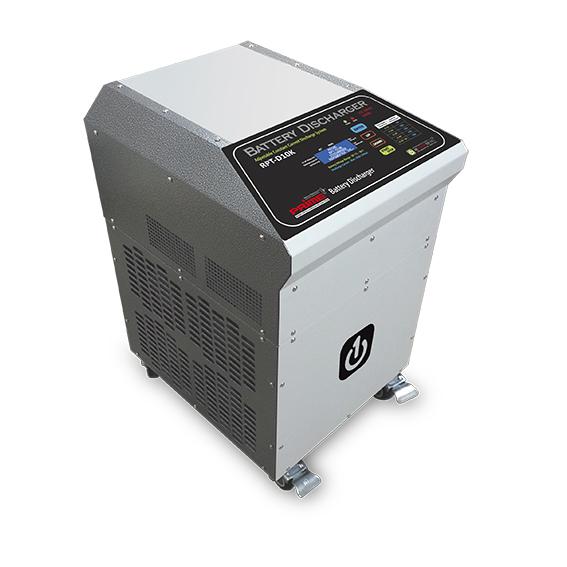

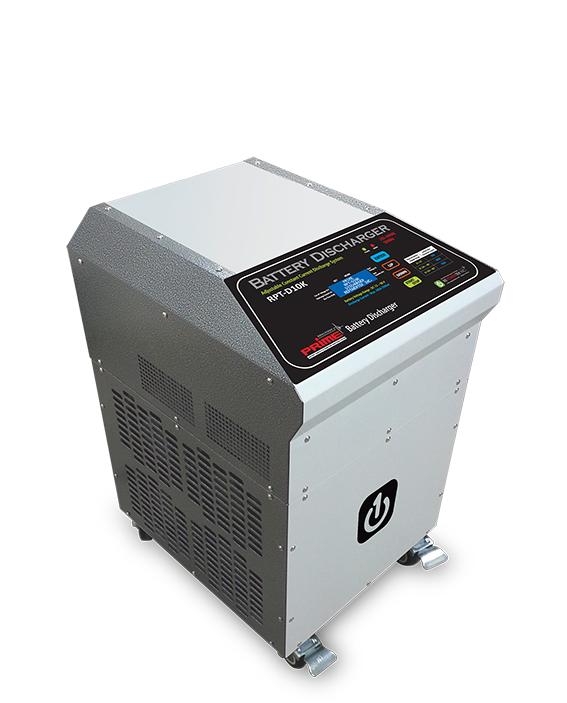

RPT-D10K Discharger (10kW. 2V~96V)
For all types of Lead-Acid Batteries
2-in-1 Multifunctional for lead acid batteries
· SoH analysis
Key Points
· Voltage Range Norminal DC 12V ~ 96V (Universal lead-acid)
· Discharge Power 10Kw
· Max Discharge current : 200A (Linear constant-current control)
· LCD Digistal display (Cut-off Voltage, Current, Run Time)
· Very Easy to Operate
· High Frequency IGBT
· Certified discharge capacity testing paired with RPT-S500, S600, and E400
Control System: IGBT microprocessor-controlled testing
User Settings: A cut-off voltage, test current, and discharge duration
Display & Protection: Real-time LCD readout with comprehensive
multi-stage fail-safe protection
High efficiency in the field of industrial batteries
Intelligent electronic protection systems
Microprocess built into the easy discharge setting

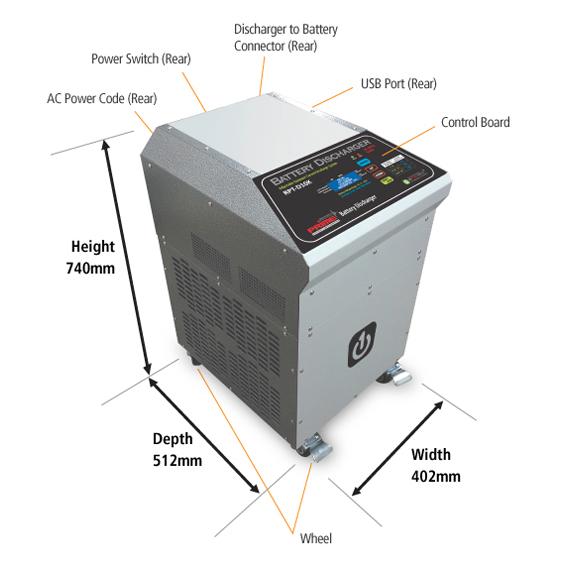

Dimensions (W*D*H) : 405 × 530 × 740 mm (15.9 × 20.9 × 29.1 in)
Weight: 43.0 kg (94.8 lbs)
Voltage & Frequency : AC 220 ~ 240V / 50 ~ 60 Hz
Battery Voltage (Adjustable) DC 12V ~ 96V
Output DC 12V (50A Discharge Current)
Output DC 24V (100A Discharge Curren)
Output DC 36V (150A Discharge Curren)
Output DC 48V (200A Discharge Curren)
Output DC 50~96V (100A Discharge Curren)
70 mm² Battery Cable Included
